BELT ALIGNEMENT SYSTEM
FOR METAL OR PLASTIC BUCKETS
CONTROLO:
– Integrated inductive detector.
Preset control range: 15/20/25/30/36 (mm) in the inner side of the elevator leg or 10/15/20/25/30
The calibration piece will be supplied.
– Control precision: on request it is possible to preset in our works the control distance.

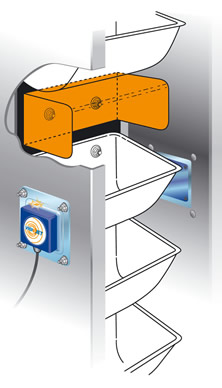

INTSTALLATION:
– Outside the elevator leg per set of two.
(complete supply of the gasket and bolts)
– Square opening of 110 (mm) on the up leg.
OPTION
– The target will be installed on request
– The detection target depends on the dimension of buckets.
IF THE ELEVATOR IS MORE THAN 30 MT., IT IS SUGGESTED
TO MOUNT 2 PAIRS OF BELT ALIGNMENT SYSTEM.

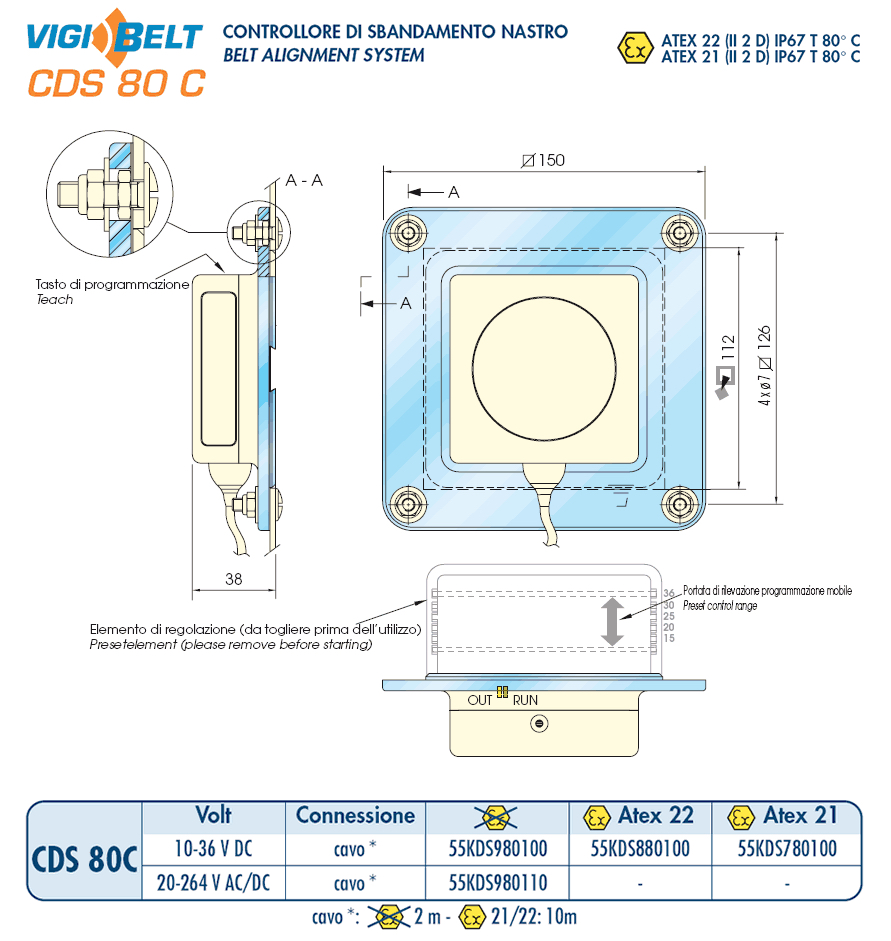

Technical data
