ELEVATOR BUCKETS / JET AND EUROJET SERIES
ELEVATOR BUCKETS PRESSED STEEL
STAINLESS STEEL
1

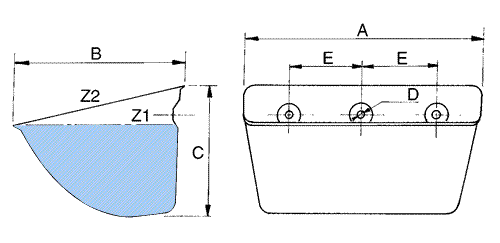

JET1_grande

The steel “JET” Bucket is the last born of the very high performance buckets’ range. It is made of pressed steel of very high resistance, without any welding. The steel “JET” Bucket represents the perfect synthesis of modern injection and elevation engineerings for most of dusty products.

OPTIONS
– Rear reinforcement moulding (N 10-90 TO 23-160)
– Front reinforcement moulding
– Reinforcement iron welded, 1 or 3 sides
– Oil protection

N°
 A
 B
 C
 Hole Capacity Buckets
 Weight Kg
  mm mm mm Nbr D
mm		 E
mm		 Z2 Z1 /mtr 1,0
mm		 1,2
mm		 1,5
mm		 2,0
mm		 2,5
mm		 3
mm		 4
mm
JET 08-080 85 80 58 2 8 43 0.21 0.18 15 0.11
JET 10-090 105 92 70 2 8 50 0.38 0.26 14 0.15
JET 12-100 125 103 80 2 8.5 67 0.62 0.45 10.3   0.27
JET 13-120 138 125 90 2 8.5 70 0.77 0.65 10.3     0.40
JET 14-120 146 120 90 2 8.5 70 0.87 0.71 10.5     0.40
JET 15-140 154 140 108 2 9 70 1.25 0.95 8.5     0.54
JET 18-140 188 141 110 2 9 100 1.75 1.38 8.5     0.65
JET 20-140 207 142 110 2 9 100 1.79 1.37 8.5     0.73
JET 22-140 227 142 110 2 9 120 2.00 1.58 8.5     0.77
JET 23-140 237 142 110 2 9 120 2.08 1.60 8.5     0.81
JET 20-160 205 169 132 2 11 100 2.60 2.03 7       1.18
JET 23-160 235 169 132 2 11 120 3.00 2.40 7       1.33
JET 24-160 245 169 132 2 11 140 3.18 2.46 7       1.41
JET 26-160 265 169 132 3 11 80 3.50 2.80 7       1.50
JET 28-160 285 169 132 3 11 80 3.76 2.95 7       1.59
JET 30-160 310 176 128 3 11 100 4.00 3.00 7       1.65
JET 33-160 339 176 128 3 11 110 4.32 3.17 7       1.79
JET 35-160 356 176 128 3 11 120 4.53 3.47 7       1.87
JET 37-160 375 176 128 4 11 90 4.85 3.55 7       1.91
JET 20-180 209 188 147 2 11 110 3.15 2.40 6.5       1.24
JET 24-180 249 188 147 2 11 140 3.90 2.98 6.5       1.53
JET 26-180 269 188 147 3 11 80 4.30 3.32 6.5       1.57
JET 28-180 289 188 147 3 11 80 4.60 3.60 6.5       1.71
JET 30-180 309 188 147 3 11 100 5.00 3.90 6.5       1.80
JET 33-180 339 188 147 3 11 110 5.55 4.32 6.5       1.94
JET 35-180 359 188 147 3 11 120 5.90 4.60 6.5       2.05
JET 37-180 379 188 147 4 11 90 6.30 4.90 6.5         2.73
JET 25-215 255 216 162 3 11 80 5.20 4.00 5.5       1.90
JET 28-215 285 216 162 3 11 80 5.90 4.65 5.5       2.09
JET 30-215 312 216 162 3 11 100 6.70 5.20 5.5       2.24
JET 33-215 340 220 162 3 11 110 7.20 5.65 5.5         2.35
JET 35-215 360 220 164 3 11 120 7.60 5.85 5.5         3.20
JET 37-215 380 220 164 4 11 90 8.60 6.50 5.5         3.32
JET 44-215 450 220 164 4 11 110 10.00 7.70 5.5         3.78
JET 47-215 480 220 164 4 11 120 10.53 8.50 5.5         4.04
JET 50-215 510 220 164 4 11 135 11.20 9.00 5.5         4.30
JET 53-215 540 220 164 6 11 80 11.87 9.50 5.5         4.56
JET 56-215 570 220 164 6 11 90 12.54 10.00 5.5         4.82
JET 63-215 640 220 164 7 11 90 14.12 11.30 5.5         5.42
JET 33-250 340 253 190 4 11 80 8.95 6.70 5           4.10 5.5
JET 35-250 360 253 190 4 11 80 9.50 7.30 5           4.35 5.80
JET 37-250 380 253 190 4 11 90 10.10 7.60 5           4.60 6.15
JET 42-250 430 253 190 5 11 80 11.50 8.70 5           5.25 7.00
JET 44-250 450 253 190 5 11 80 12.10 9.15 5           5.50 7.35
JET 47-250 480 253 190 5 11 90 13.00 9.75 5           5.80 7.75
JET 53-250 540 253 190 6 11 80 14.60 11.00 5           6.60 8.80
JET 56-250 570 253 190 6 11 90 15.35 11.60 5           6.95 9.30
JET 63-250 640 253 190 7 11 90 17.20 13.00 5           7.80 10.40

* Different boring on request
** Different thickness on request

psd


Download the catalog PDF
