ELEVATOR BUCKETS / JET E EUROJET SERIES
ELEVATOR BUCKETS PRESSED STEEL
STAINLESS STEEL
2

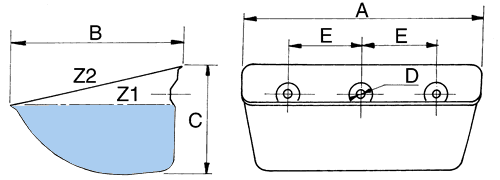

EUROJET1_grande

The steel “EUROJET” Bucket is the last born of the very high performance buckets’ range. It is made of pressed steel of very high resistance, without any welding. The steel “JET” Bucket represents the perfect synthesis of modern injection and elevation engineerings for most of dusty products.

OPTIONS
– Rear reinforcement moulding (N 10-90 TO 23-160)
– Front reinforcement moulding
– Reinforcement iron welded, 1 or 3 sides
– Oil protection

N°
 A
 B
 C
 Hole Capacity Buckets
 Weight KG
  mm mm mm Nbr D
mm		 E
mm		 Z2 Z1 /m 1,0
mm		 1,2
mm		 1,5
mm		 2,0
mm		 2,5
mm		 3,0
mm
EJE 10-090 105 93 66 2 8.50 50 0.35 0.25 14 0.15
EJE 12-100 125 104 78 2 8.50 67 0.55 0.35 12   0.23
EJE 13-120 135 115 81 2 8.50 70 0.65 0.45 12   0.28
EJE 16-130 165 130 87 2 8.50 100 0.95 0.60 12     0.44
EJE 18-140 185 140 92 2 8.50 100 1.29 0.90 10.5     0.55
EJE 20-140 205 140 90 2 11 100 1.45 1.05 10.5     0.61
EJE 23-165 238 165 110 2 11 120 2.45 1.73 9       1.18
EJE 25-165 258 165 110 3 11 77 2.70 2.00 9       1.27
EJE 28-165 288 165 110 3 11 80 3.00 2.25 9       1.40
EJE 30-180 308 187 120 3 11 100 3.70 2.45 8.13       1.55
EJE 30-215 308 215 140 3 11 100 5.20 4.00 7.14       1.94 2.40 2.90
EJE 33-215 338 215 130 3 11 120 5.50 3.95 7.14       1.97 2.50 3.00
EJE 37-215 378 215 130 4 11 90 6.20 4.10 7.14       2.25 2.86 3.45
EJE 44-215 448 215 130 5 11 90 7.50 5.60 7.14       2.70 3.20 3.85

* Different boring on request
