ELEVATOR BELTS
JET FLAM VLE SUPER OIL 100% NBR
VERY LOW ELONGATION AND VERY HIGH OIL RESITANCE
Without slipping
JET FLAM VLE LOGO
jet flam VLE-icona

• No elongation after first installation
• Simplified installation = One final tensioning
• Enhanced security = Not slip
• Maintenance free
COATING:
• Very Low Elongation 0,8%
• 100 % NBR black rubber
• Antistatic • Flame resistant ISO 340
• Mineral, vegetal and animal high fat resistant
• Coating Th. 3+1 :  3 mm pulley side for a better adherence and a longer lifetime • Antiabrasive : ISO 4649< 170 mm3
TEXTILE CARCASS:
• Polyester chain • Weft and link polyamide
WORKING TEMPERATURE:
• -25°C to +80°C
IN AREA AT RISK OF EXPLOSION

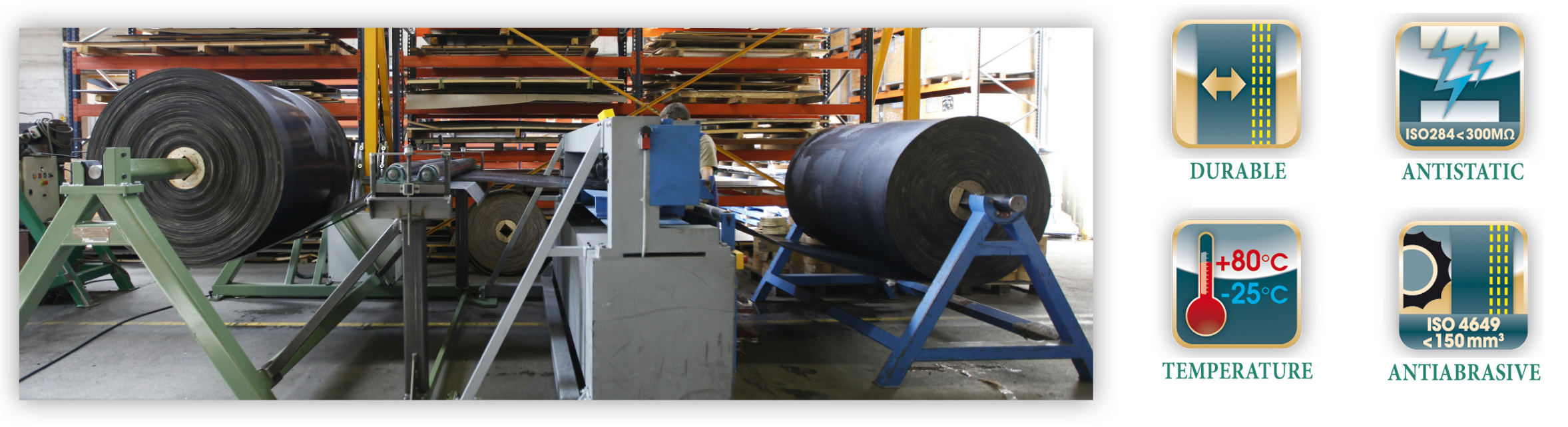

jet oil vle foto eng

TECHNICAL DATA

RUPTURE STRENGTH (N/MM)

400

630

800

1000

1250

1600

Number of Plies

1

1

1

2

2

2

Thicknesses * (mm) + Coating
Total (mm)

3+1
5,9

3+1
6,1

3+1
6,9

3+1
10,0

3+1
10,2

3+1
11,9

Average weight (kg/m2)

7,8

8,1

9,0

11,0

11,23

13,0

Minimum Roll Diameter (mm)
Covered Pulley

200

250

315

630

630

800

Minimum Roll Diameter (mm)
Uncovered Pulley

250

315

400

800

800

1000

Width maximum advised (mm)

650

1000

1250

1600

1800

1800

*Tolerances : Coating Thicknesses +/- 0,2 mm — Total Thickness +/- 1mm — Width +/- 1% — +/- 5 mm minimum
Non contractual document
