ELEVATOR BELTS
JET FLAM
FLAME RETARDANT ELEVATOR BELT
JET FLAM
jet flam-icona

COATING:
• SBR/NBR black rubber
• Antistatic
• Flame resistant ISO 340
• Vegetal and animal medium fat resistant
• Coating Th. 3+1 :  3 mm pulley side for a better
adherence and a longer lifetime
• Antiabrasive : ISO 4649< 170 mm3
TEXTILE CARCASS:
• Polyester chain • Polyamide weft
WORKING TEMPERATURE:
• -20°C to +80°C

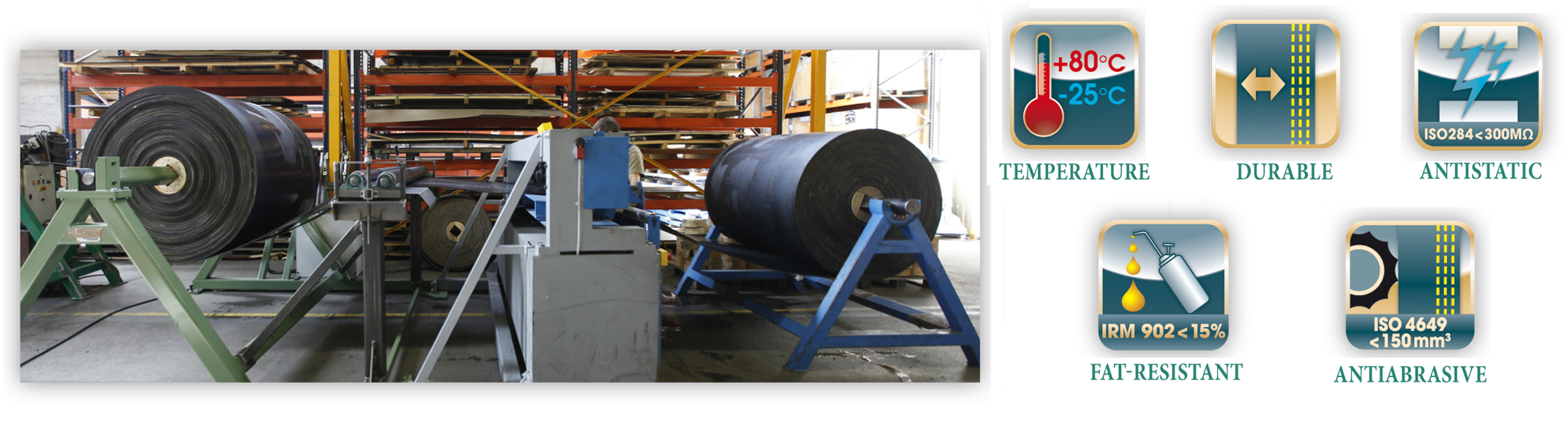

jet flam foto eng

TECHNICAL DATA

RUPTURE STRENGTH (N/MM)

315

500

630

800

1000

1250

1600

Number of Plies

2

3

3

4

USE BELT
JET FLAM VLE
SUPER OIL100 % NBR

Thicknesses * (mm) + Coating
Total (mm)

3+1
6,3

3+1
7,2

3+1
7,9

3+1
9,3

Average weight (kg/m2)

8,9

9,8

10,2

12,0

Minimum Roll Diameter (mm)
Covered Pulley

200

315

400

500

Minimum Roll Diameter (mm)
Uncovered Pulley

250

400

500

630

Width maximum advised (mm)

400

630

800

1000

*Tolerances : Coating Thicknesses +/- 0,2 mm — Total Thickness +/- 1mm — Width +/- 1% — +/- 5 mm minimum

Non contractual document
